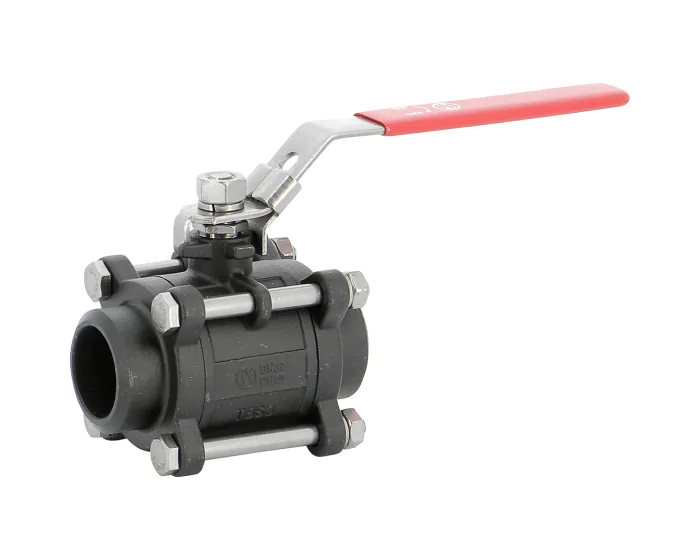

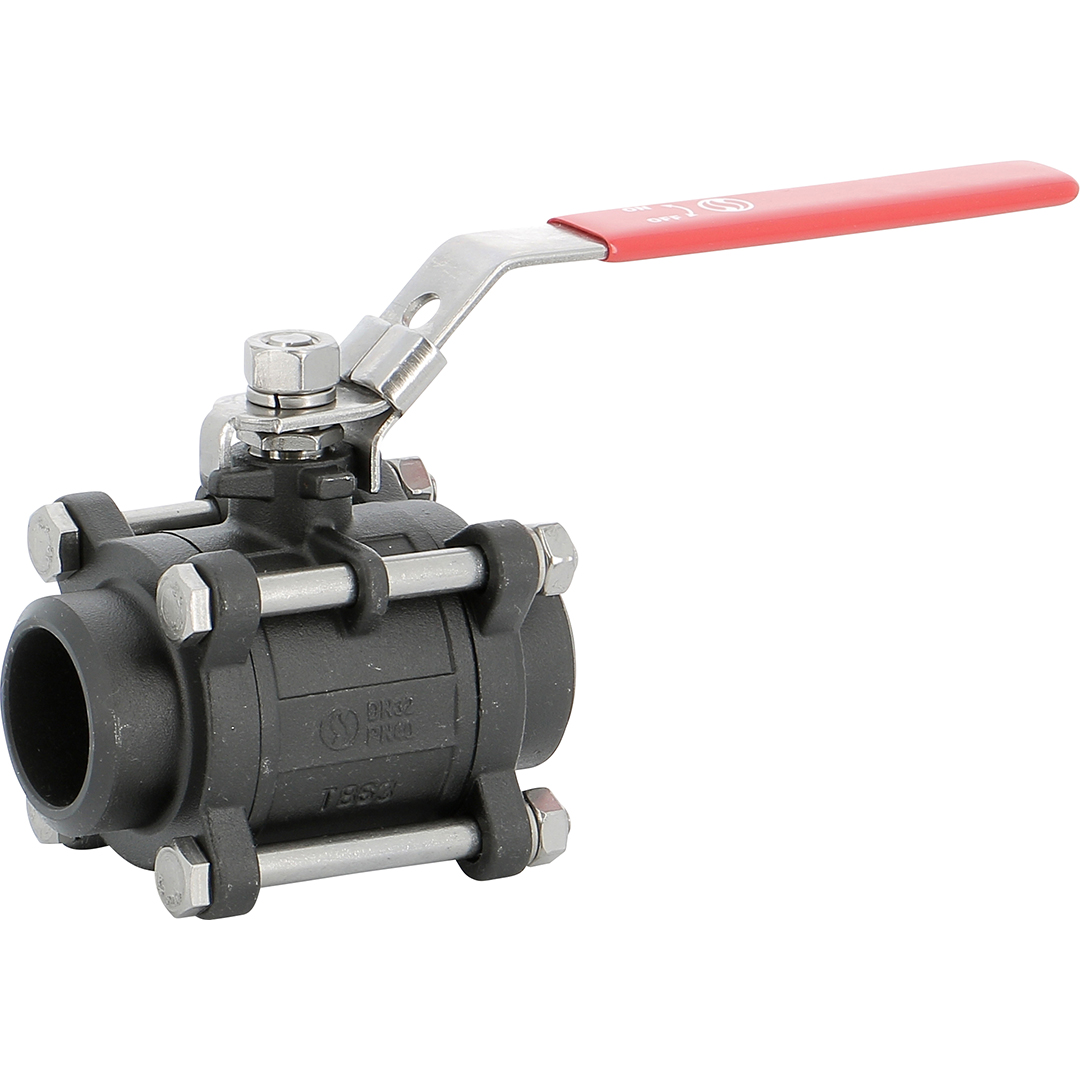

The 797 series ball valve , 3-piece body in welding BW steel, with PTFE packing gland for the chemical, pharmaceutical and petrochemical industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 304 |
| Lockable | Yes |
| Torque (Nm) | 2 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 59.0 |
| Fluid | Oxygen / Argon / Nitrogen |
| Kv (m³/h) | 5.2 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | Welding BW |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 304 |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN8 - 1/4'' | 797008 | S1007884 |
€9.86
(excl. btw)
|
add to cart |
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN10 - 3/8'' | 797010 | S1007885 |
€9.86
(excl. btw)
|
add to cart |
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' | 797015 | S1007886 |
€10.97
(excl. btw)
|
add to cart |
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' | 797020 | S1007887 |
€13.67
(excl. btw)
|
add to cart |
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' | 797025 | S1007888 |
€19.39
(excl. btw)
|
add to cart |
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 | 797032 | S1007889 |
€29.21
(excl. btw)
|
add to cart |
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 | 797040 | S1007890 |
€46.76
(excl. btw)
|
add to cart |
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' | 797050 | S1007891 |
€68.89
(excl. btw)
|
add to cart |
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN65 - 2''1/2 | 797065 | S1007892 |
€143.81
(excl. btw)
|
add to cart |
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN80 - 3'' | 797080 | S1007893 |
€211.83
(excl. btw)
|
add to cart |
| Welding BW Carbon steel A216 WCB (1.0619) Full 3-piece body DN100 - 4'' | 797100 | S1007894 |
€419.50
(excl. btw)
|
add to cart |
